Arc Flash Warning Label Requirements: What You Need to Know

Arc Flash warning labels identify electrical hazards by showing danger levels, required PPE, and safe distances to prevent injuries.

This guide explains when labels are needed, what information they must include, and how to comply with OSHA and NFPA 70E standards. It also covers training, documentation, and top printers for durable labels to keep your team safe.

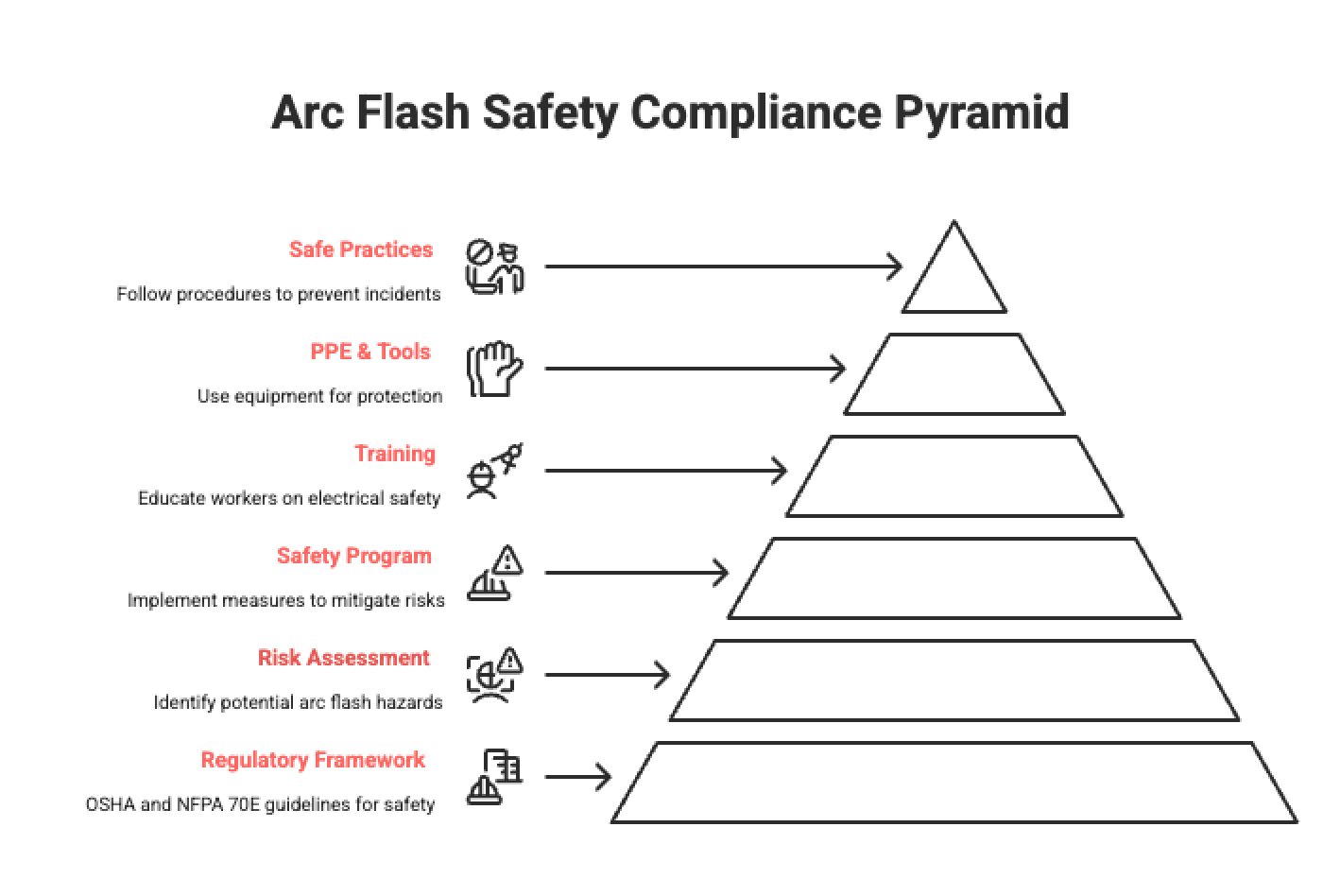

How to Ensure OSHA Arc Flash Compliance with NFPA 70E?

Ensuring OSHA arc flash compliance through NFPA 70E involves a strategic and systematic approach to electrical safety in the workplace. Here's a practical guide to help you achieve and maintain compliance:

1. Understand the Regulatory Framework

OSHA enforces electrical safety through 29 CFR 1910 Subpart S (General Industry) and Subpart V (Utilities). While it doesn’t mandate NFPA 70E directly, it uses the standard as a benchmark for best practices to prevent the failure of electric equipment parts. Compliance with NFPA 70E helps fulfill OSHA’s General Duty Clause, which requires employers to provide a workplace free from recognized hazards.

2. Conduct an Arc Flash Risk Assessment

Identify all potential arc flash hazards in equipment operating at 50 volts or more. Calculate the incident energy levels at each point of exposure using engineering-based arc flash studies to determine the required personal protective equipment (PPE). Label equipment accordingly with arc flash boundaries and PPE requirements.

3. Implement an Electrical Safety Program

Develop and document a written electrical safety program that includes roles, responsibilities, procedures, and training. The program should be reviewed and updated at least every three years or whenever changes occur in the workplace.

4. Train Qualified and Unqualified Workers

Ensure employees are properly trained based on their roles. Qualified workers must understand the hazards, know how to use PPE, and be trained in safe work practices and emergency response. Unqualified workers should receive awareness-level training.

5. Use Appropriate PPE and Tools

Provide and enforce the use of arc-rated personal protective equipment (PPE) based on the incident energy analysis or NFPA 70E arc flash PPE category method, including specific PPE requirements. Tools must be insulated and rated for the voltage level being worked on.

6. Establish Safe Work Practices

Follow NFPA 70E requirements for de-energizing equipment before servicing. If energized work is justified, follow strict protocols including written Energized Electrical Work Permits, proper boundaries, PPE use, and constant supervision.

7. Label Electrical Equipment

Label all electrical equipment with the calculated incident energy level, arc flash boundary, and required PPE. Labels must be legible and updated after any changes in the electrical system or hazard assessment.

8. Maintain Documentation and Audits

Keep detailed records of risk assessments, training, equipment labeling, and incident reports. Perform audits to ensure procedures are being followed and update your safety program as needed.

9. Review and Update Regularly

NFPA 70E is updated every three years. Ensure your safety program reflects the latest edition. Reassess your facility’s electrical system whenever there’s a change in equipment or processes.

What Equipment Requires An Arc Flash Label?

Arc flash labels are required on any piece of electrical equipment where an arc flash hazard may be present. These labels provide critical safety information, including incident energy levels, required PPE, and arc flash clothing approach boundaries. Proper labeling helps protect workers and ensures compliance with NFPA 70E and OSHA standards.

1. Switchboards

Switchboards distribute electricity from one or more sources to multiple circuits. Due to the high energy levels involved, they are common locations for arc flash incidents and must be clearly labeled.

2. Panel Boards

Panel boards (or breaker panels) serve as control centers for electrical systems. Because technicians often open them for maintenance or troubleshooting, clear arc flash labeling is essential.

3. Industrial Control Panels

These panels house relays, motor drives, and other control devices. Since they involve complex wiring and are regularly accessed, they pose significant arc flash risks.

4. Motor Control Centers

Motor control centers (MCCs) manage motor-driven equipment in industrial settings. Their high current and frequent servicing make arc flash labeling a requirement.

5. Transformers

Although typically enclosed, transformers may still present arc flash hazards during inspection or maintenance. Labels help ensure workers approach with appropriate caution.

6. Disconnect Switches

These switches are used to de-energize circuits for maintenance. Because they are manually operated, arc flash labels are necessary to inform workers of potential danger before operating the switch.

7 Elements of an Arc Flash Label

To ensure worker safety and compliance with the National Fire Protection Association (NFPA) 70E, arc flash labels must include specific details that inform and protect workers. These elements provide vital information about the potential hazards and the necessary protective measures when working on or near energized equipment.

1. Danger or Warning Header

This is the topmost part of the label and immediately signals the severity of the hazard. “Danger” is used for higher-risk situations, while “Warning” is used for lower but still serious risks.

2. Incident Energy at the Corresponding Working Distance

Indicates the amount of thermal energy (in cal/cm²) that a worker could be exposed to during an arc flash at a specific distance from the source. This value helps determine the level of PPE required.

3. Min. Arc Rating is the Incident Energy

This states the minimum arc rating of the PPE needed to protect against the calculated incident energy. It ensures that workers are using gear rated for the actual risk level.

4. Arc Flash Boundary

Defines the distance from the equipment within which a person could receive a second-degree burn from an arc flash. Workers crossing this boundary must wear appropriate PPE and follow safety procedures.

5. Personal Protective Equipment (PPE)

Lists the required PPE based on the incident energy, such as arc-rated clothing, gloves, face shields, and hearing protection. This ensures workers are properly equipped before beginning any task.

6. Limited Approach and Restricted Approach

These fields refer to the Shock Hazard Approach Boundaries. They define how close an unqualified or qualified person may come to exposed energized parts and under what conditions.

7. Shock Risk When Cover is Removed

This note alerts workers that removing the cover of the equipment exposes live components, increasing the risk of electric shock and requiring additional safety measures.

What Are the Training Requirements for Arc Flash Compliance?

Training is a core requirement for complying with both OSHA regulations and NFPA 70E standards. Workers must understand electrical hazards, know how to recognize them, and follow safe work practices. Here are the key components of arc flash training compliance:

1. Training Based on Job Role

Employees must receive training specific to their job duties.

• Qualified workers must be trained to identify hazards, assess risks, and work safely on or near exposed energized parts.

• Unqualified workers must be trained in hazard awareness and instructed to stay outside the limited approach boundary.

2. Understanding Hazards and Risk

Training should include information on arc flash hazards, shock risks, and how to identify unsafe conditions. Workers must understand concepts such as incident energy, arc flash boundaries, and appropriate PPE.

3. Hands-On and Classroom Instruction

Training must include both theoretical knowledge and practical application. This may include classroom sessions, equipment demonstrations, and real-world simulations using PPE and test instruments.

4. PPE Use and Maintenance

Workers must be trained to properly select, inspect, use, and maintain arc-rated PPE, including gloves, face shields, balaclavas, and clothing. Improper use or failure to inspect PPE can lead to injury even when compliant gear is worn.

5. Safe Work Practices

Training should cover procedures such as verifying de-energization, using lockout/tagout, establishing boundaries, and completing energized electrical work permits when necessary.

6. Frequency of Training

NFPA 70E requires retraining at least every three years, or whenever:

• The worker demonstrates a lack of knowledge or safe practices

• New equipment or procedures are introduced

• Standards or regulations change

7. Documentation

Employers must document all training, including the date, content, and names of workers trained. Records should be maintained for compliance verification and audit purposes.

Choose the Right Printer for Arc Flash Warning Label Printing

Printing arc flash warning labels requires high-quality, durable output that withstands harsh industrial environments. For consistent compliance and professional labeling, choose a thermal transfer printer that supports high-resolution graphics, barcode printing, and long-lasting label materials. Below are two top options for the best label printing solutions for your needs:

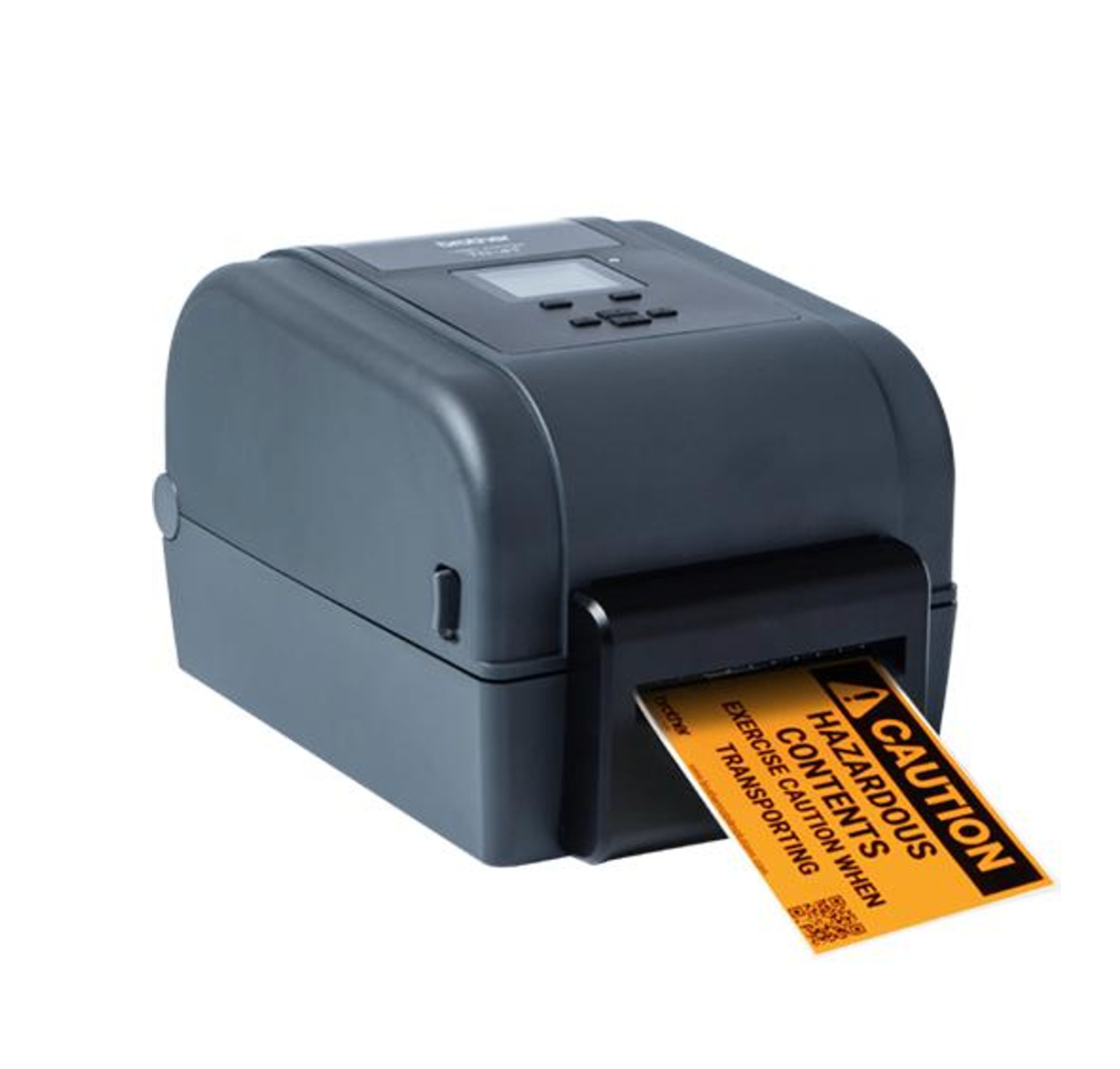

Brother TD-4750TNWBCS

The Brother TD-4750TNWBCS is an industrial-grade thermal transfer label printer designed specifically for safety and compliance labeling.
Key features:

• High-resolution 300 dpi printing for sharp, legible arc flash labels

• Supports a wide range of label materials, including high-durability synthetic media

• Wi-Fi, Ethernet, and USB connectivity for flexible integration

• Compatible with standard label design software, including BarTender and NiceLabel

• Built for 24/7 industrial environments with minimal downtime

Pros:

• Fast printing speeds up to 7 inches per second

• High-resolution printing for clear, detailed labels

• Supports wireless, Ethernet, and USB connectivity

• Durable and reliable for industrial use

• Easy-to-use with touchscreen interface



Cons:

• Higher upfront cost

• Larger footprint may require more space

• Limited to monochrome (black and white) printing

• Some users report occasional software setup challenges



Why choose it for arc flash labels:
The TD-4750TNWBCS delivers precise, regulation-compliant labels that meet NFPA 70E requirements. It’s ideal for operations needing consistent print quality and scalability across multiple sites.

Godex G530

The Godex G530 is a cost-effective yet reliable thermal transfer label printer suitable for medium-duty labeling tasks.
Key features:

• 300 dpi print resolution for clear text and graphics

• Compact footprint, great for maintenance shops or smaller facilities

• Supports a variety of label and ribbon types

• USB, serial, and Ethernet interfaces for flexible connectivity

• User-friendly interface and easy ribbon/label loading

Pros:

• 300 dpi print quality for sharp text and barcodes

• Supports both thermal transfer and direct thermal printing

• Handles various label types and sizes

• Large ribbon capacity reduces ribbon changes

• Multiple connectivity options: USB, RS-232, Ethernet

• User-friendly label design software included



Cons:

• Print speed up to 4 inches per second, slower for high volumes

• Larger footprint than some desktop printers

• Requires regular maintenance to keep print quality

• Setup and integration can take some time

Why choose it for arc flash labels:
The G530 is a solid choice for businesses that need reliable arc flash label printing without the higher price tag of industrial-grade units. It’s a good fit for smaller teams or infrequent labeling needs.

OmegaBrand Printers: Precision, Reliability, and Performance You Can Trust

OmegaBrand is your go-to brand for high-quality printers that deliver unmatched precision and durability. Whether you need labels for industrial safety, retail, or office use, Omega printers combine cutting-edge technology with user-friendly design to meet all your printing needs.

With robust construction, fast print speeds, and crystal-clear output, Omega printers ensure your labeling is always professional and compliant. Choose Omega for reliable performance that keeps your business running smoothly—because every print matters. Book a free call with us now!

Conclusion

Ensuring compliance with Arc Flash warning label requirements is essential for protecting workers and maintaining a safe electrical work environment. Proper labeling, combined with thorough risk assessments, comprehensive training, and an effective electrical safety program, reduces the risk of injury and helps meet OSHA and NFPA 70E standards. Staying up to date with regulatory changes, regularly updating labels, and using high-quality printing solutions further strengthens your safety measures. By prioritizing these steps, you not only safeguard your team but also foster a culture of safety that minimizes hazards and supports long-term operational success.

Frequently Asked Questions

How often should arc flash labels be updated?

Arc flash labels should be updated whenever there are significant changes to the electrical system, such as equipment modifications, upgrades, or after a new arc flash risk assessment. At a minimum, labels should be reviewed and verified every three to five years to ensure accuracy and compliance with current standards.

What is the minimum voltage that requires an arc flash label?

NFPA 70E generally requires arc flash labeling on equipment operating at 50 volts or higher. This threshold aligns with OSHA’s requirements to protect workers from electrical hazards.

Are there special labeling requirements for different types of equipment?

Yes. While the core arc flash information remains consistent, labels may vary based on equipment type, operating voltage, incident energy levels, and specific hazards. For example, transformers and motor control centers might have different approach boundaries or PPE requirements that must be clearly indicated.

What has changed in the 2024 NFPA 70E update regarding arc flash labeling?

The 2024 update to NFPA 70E introduced clearer language on label content requirements, emphasizing digital documentation integration, enhanced minimum label durability standards, and updated criteria for incident energy calculation methods. It also encourages adopting QR codes on labels to link directly to detailed safety procedures and equipment histories.
